Hello, I’m looking for the connecting cable between the DigiRig mobile and the 10m Albrecht AE 485s transceiver, but I can’t find it.
The connector is a 6-pin Foster type.
Is this cable available for purchase?
Thanks!
73, Wolfgang
Wolfgang,
At this time there is no cable in store for 6 pin aviation-style mic connector (GX16-6?).

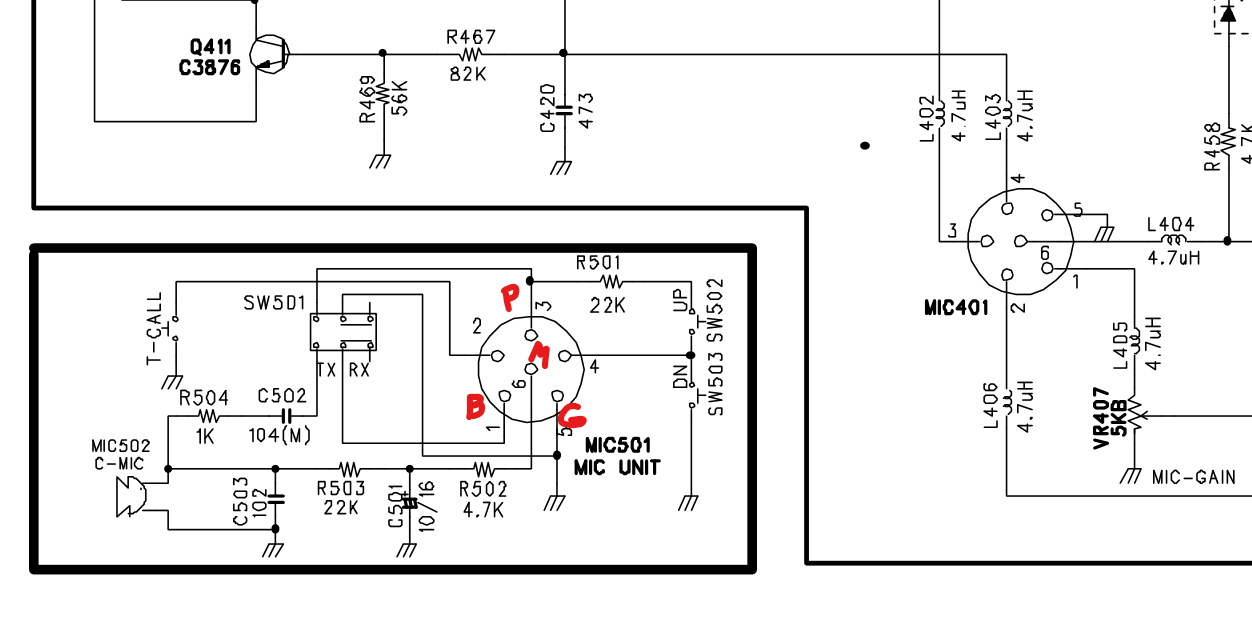

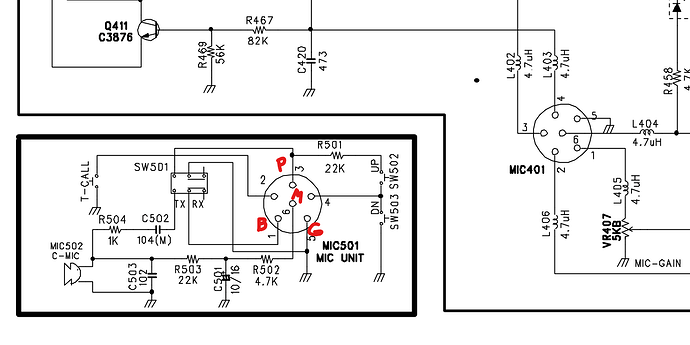

I found the schematic for the radio so if you want to make cable at home, here’s the wiring information:
GX16-6 pin 3 (PTT) –> 3.5mm TRRS ring 2 (RIG_PTT)
GX16-6 pin 5 (GND) –> 3.5mm TRRS sleeve (GND)
GX16-6 pin 6 (MIX) –> 3.5mm TRRS ring 1 (RIG_AFIN)
EXT 3.5mm TRS tip –> 3.5mm TRRS tip (RIG_AFOUT)
The cable layout includes a tail for the audio in the back of the radio similar to this one:
