Cable for TYT TH-9000

, ,
1

image796×232 21.3 KB

From the image this appears to be a view into the socket on the transceiver side.

Based on the above RJ-45 mic pinout Digirig audio cable will look like this:
RJ-45 Pin #1 (GND) → 3.5mm TRRS sleeve (GND)
RJ-45 Pin #2 (PTT) → 3.5mm TRRS ring2 (RIG_PTT)
RJ-45 Pin #3 (MIC) → 3.5mm TRRS ring1 (RIG_AFIN)
RJ-45 Pin #4 (MIC GND) → 3.5mm TRRS sleeve (GND)

3.5mm TS tip (EXT. SPK+) → 3.5mm TRRS tip (RIG_AFOUT)
3.5mm TS sleeve (EXT. SPK-) → NC

Make sure to leave sleeve on ext. speaker unconnected:

The front of the radio features a data connection. Likely serial so this can potentially be interfaced with Digirig’s serial port. From the looks of the compatible PC50 cable I would guess logic levels, but that needs to be confirmed.

1 Like
2

Is this cable currently available? I could not find it on the site.

3

I compared pinouts and it looks like this one is a match:

Please post your results.

1 Like
4

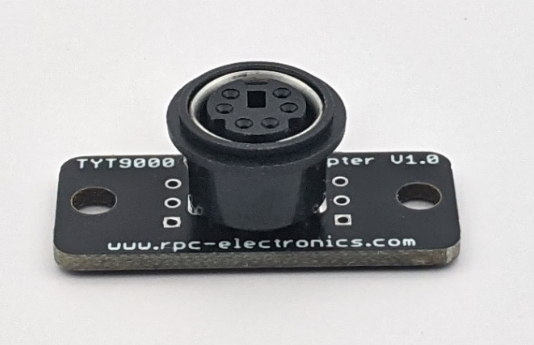

If I use the RPC Electronics, LLC: TYT TH-9000D MiniDIN Packet Adapter. What cable do I need to order for the Digirig Lite?

Screenshot_20250718_130934_Samsung Internet
Screenshot_20250718_130934_Samsung Internet534×345 94.4 KB

5

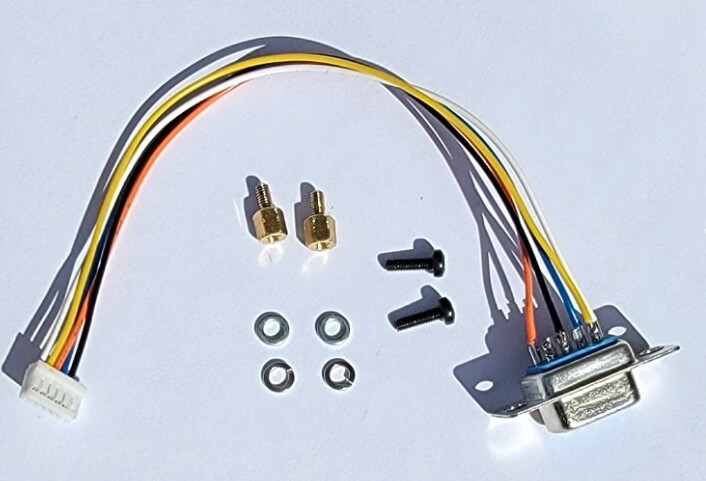

If I use the Masters Communications AC-25 Reapter adapter do you make a 1200Bd cable that would work with the Digirig Lite?

Screenshot_20250718_141723_Samsung Internet
Screenshot_20250718_141723_Samsung Internet706×481 66.8 KB

6

There is a MiniDin6 cable that should work with RPC Electronics adapter:
1200 baud variant in this kit: Yaesu FT-8xx Digirig Cables Set – digirig
and 9600 baud variant here: MiniDin6 9600-baud Audio/PTT cable – digirig

As far as AC-25 Reapter adapter goes, if the pinout lines up, then this cable may work: Alinco DR-135T 9600 baud audio cable for Digirig Mobile – digirig - it’s a 9600 baud pinout though.
