Based on above pinout the Digirig audio cable will look like this:
RJ45 pin 1 (MIC) → 3.5mm TRRS ring 1 (RIG_AFIN)
RJ45 pin 2 (GND) → 3.5mm TRRS sleeve (GND)
RJ45 pin 6 (PTT-KEY) → 3.5mm TRRS ring 2 (RIG_PTT)
RJ45 pin 8 (AF) → 3.5mm TRRS tip (RIG_AFOUT)
The good approach would be to use one of the existing shielded/choked TRRS cables and crimp on the RJ-45 jack on the transceiver end.
Wow I’m glad I found this, I have two of these radios (well, one KG1000G and one KG-UV980P, but I suspect the handmic and cable is identical). I will try making one of these, but if you ever sell this cable I will buy two!
So cut one end off the linked audio cable and replace the 3.5mm end with the RJ-45 end? How would I know which wires in the audio cable are the (RIG_AFIN), (GND), (RIG_PTT), and (RIG_AFOUT) wires? Are they color coded?
Unless something like the Yaesu FT-2500M cable would work…I think it would be easier/cleaner for me to just modify a cat6 cable. If I’m looking at it right, that would be:
Pin #4 to Pin #2
Pin #5 to Pin #1
Pin #6 to Pin #6
Pin #7 to Pin #8
Here is the pinout of Digirig’s audio socket:
I wouldn’t trust any stated wire coloring convention unless I could visibly confirm it end-to-end. Continuity test is the way to go.

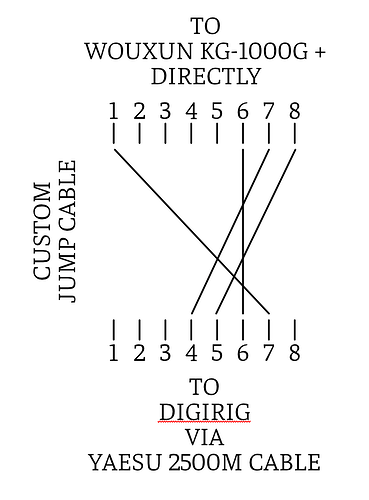

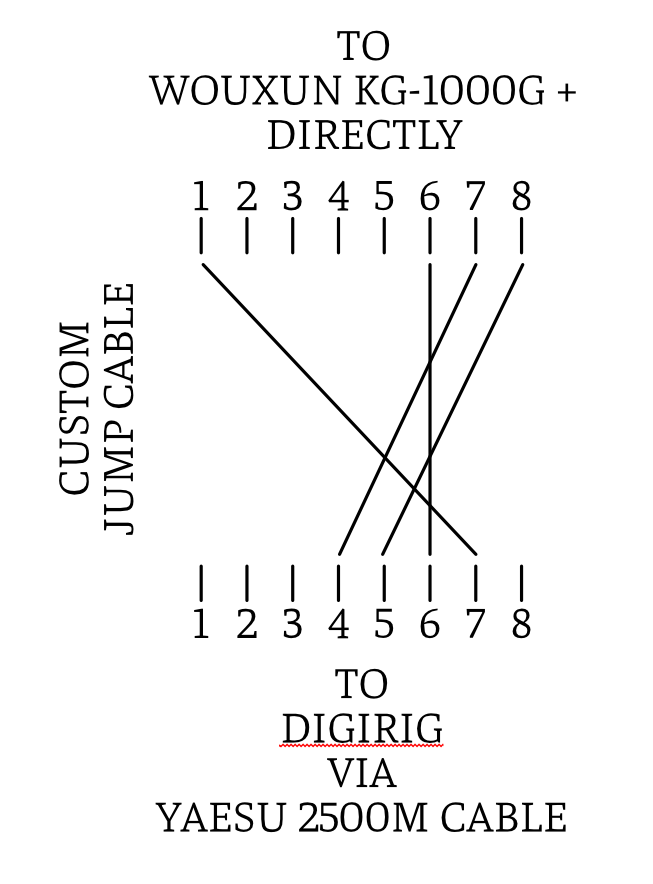

I did the continuity test and I think that it’s wired correctly. For reference, here is what I came up with:
However it is not working. I’ll tinker a bit more with it, but there is no response from the radio when the software tries to PTT.
Does the radio key up when you short ring 2 to sleeve on Digirig’s end of the cable?
Well I feel silly, I had one wire in the wrong spot. The Wouxun mic pinout has them labeled in reverse order. I thought I had compensated for that, but missed one, and then missed it on the continuity test. It’s working now.
