Cable for Yaesu FT-212RH

1

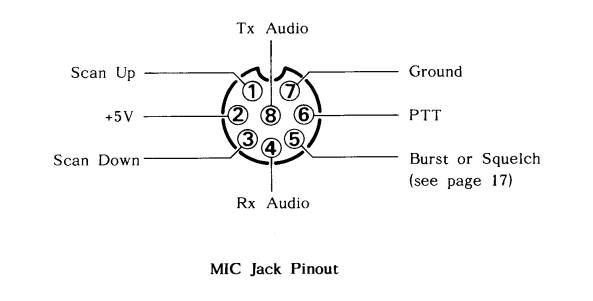

The transceiver doesn’t have an accessory port. The mic connector appears to be GX16-8 with received audio available - this will make it a cleaner connection.

image593×301 10.1 KB

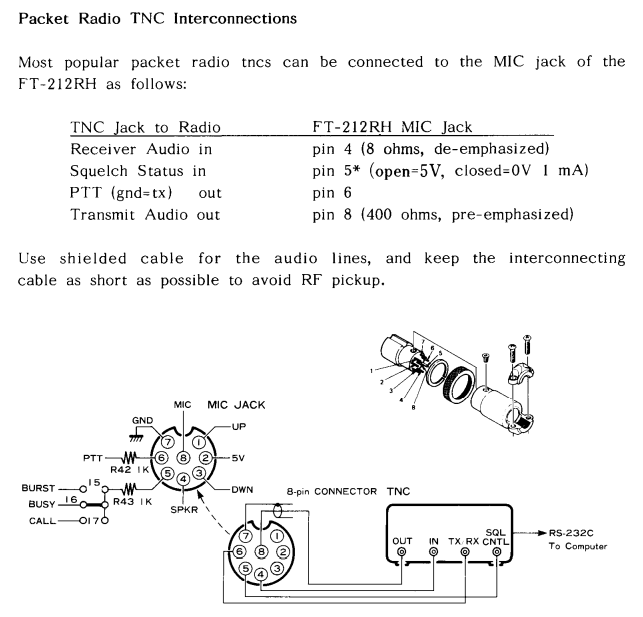

Here’s the pinout for Digirig audio cable:

GX16-8 pin 4 (Rx Audio) → 3.5mm TRRS tip (RIG_AFOUT)
GX16-8 pin 6 (PTT) → 3.5mm TRRS ring 2 (RIG_PTT)
GX16-8 pin 7 (Ground) → 3.5mm TRRS sleeve (GND)
GX16-8 pin 8 (Tx Audio) → 3.5mm TRRS ring 1 (RIG_AFIN)

image643×617 38.6 KB

Specs, pictures and link to the documentation can be found here: RigPix Database - Yaesu - FT-212RH

1 Like
2

So the TRRS would the connect to the black plug on the digirig mobile correct?

3

Yes, audio socket on Digirig Mobile (black) or Digirig Lite.

1 Like
4

Awesome, Thank you for the help! If I have any further issues I will post back here.
