Cables for TM-V7, TM-V7A

,
1

Based on the pinouts in below document (credit to OE9MKV) we can make audio and data modes and optional programming cable for this Kenwood.

An_external_Display_for_the_TM-V7.pdf (1.4 MB)


Audio Cable
RJ45 pin 2 → 3.5mm TRRS tip (RIG_AFOUT)
RJ45 pin 3 → 3.5mm TRRS ring 1 (RIG_AFIN)
RJ45 pins 4,6 → 3.5mm TRRS sleeve (GND)
RJ45 pins 5 → 3.5mm TRRS ring 2 (RIG_PTT)


Serial Cable

MiniDin6 pin 2 (GND) → 3.5mm TRRS sleeve (GND)
MiniDin6 pin 3 (TM-V7 RX) → 3.5mm TRRS tip (RIG_RXD)
MiniDin6 pin 4 (TM-V7 RX) → MiniDin6 pin 5 (TM-V7 RX)
MiniDin6 pin 6 (TM-V7 RX) → 3.5mm TRRS tip (RIG_TXD)

1 Like
2

Note that the DIN port can be used either as a serial or as a standard packet data port with support for packet at 9600bps. I don’t think you’ll be able to do better than 1200bps using the mic port.

3

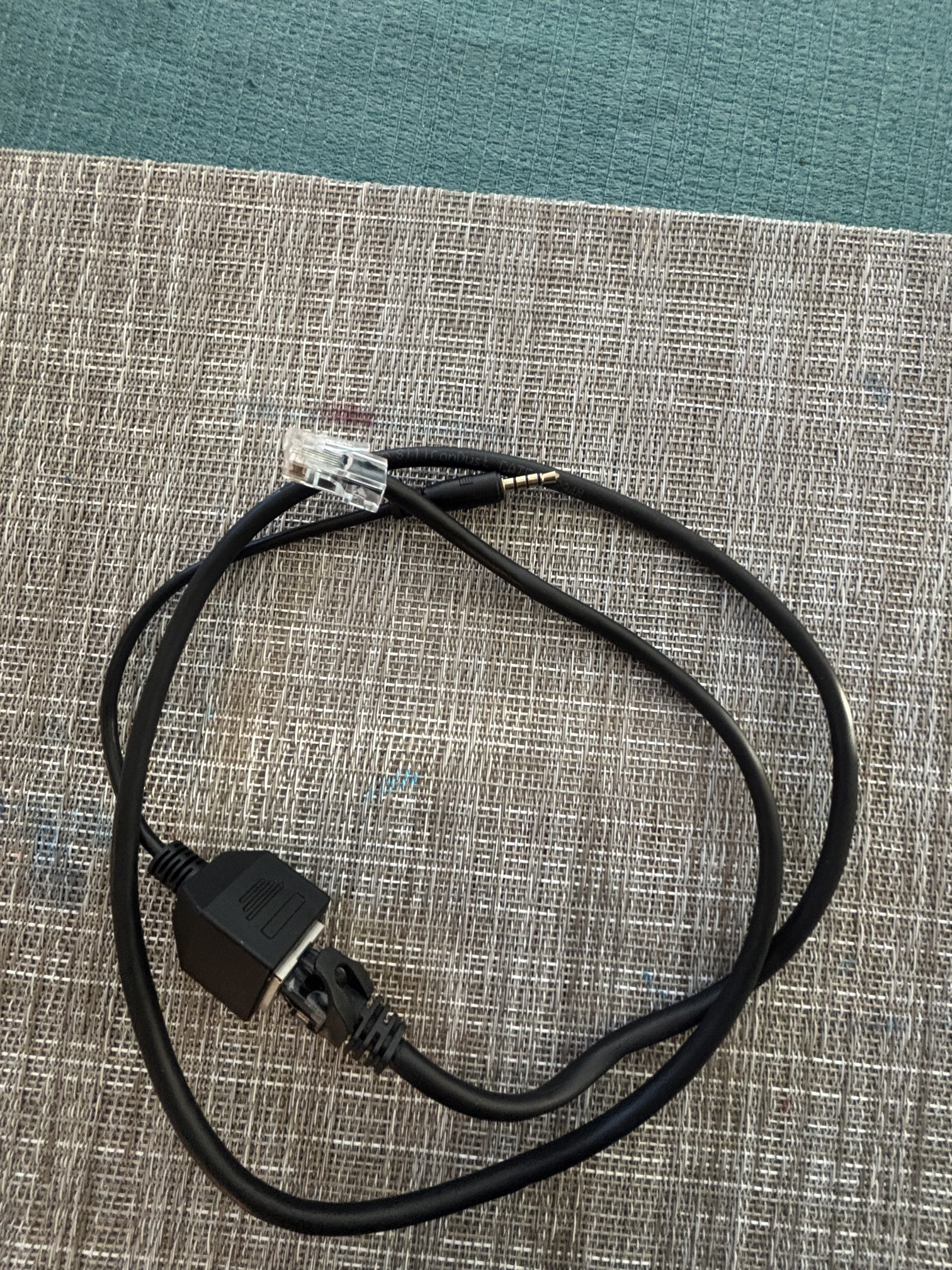

Thanks for the V7 Pinots. I was able to purchase a TRRS to RJ-45 adapter from Amazon. Simple task to build a crossover cable for the interface.

IMG_1283
IMG_12831512×2016 1.48 MB

1 Like
4

For clarification, according to the TM-V7 operators manual, Page 12, Pin 2 or RD is listed as NC:No Connection. I was unable to get any audio from that pin into my Digirig.
