Help me ID this digirig so I know what rigs it can work with please

,
1

Hello,

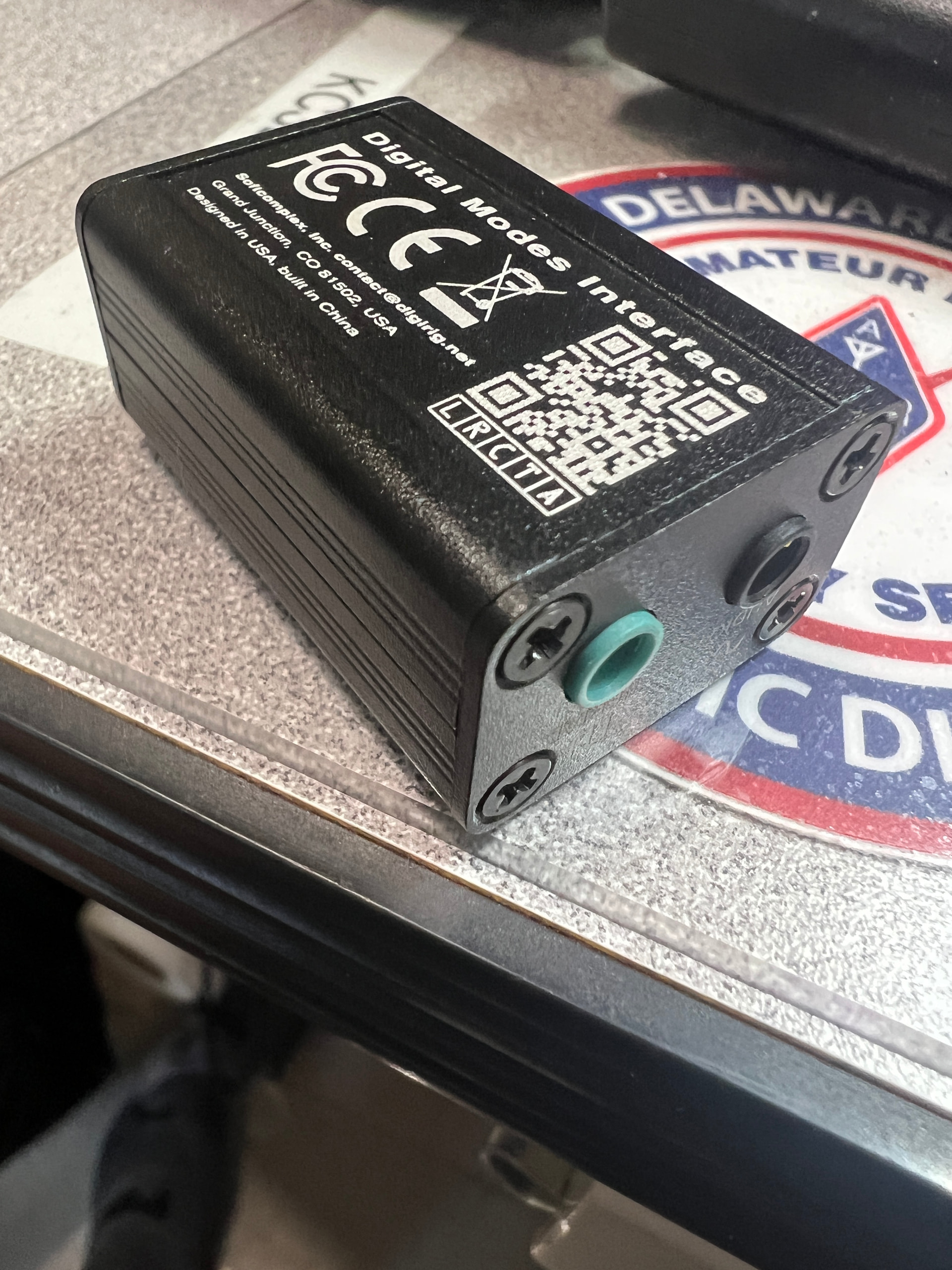

I am trying to ID this digirig. I am not sure how many versions are out there but I need to find out if this unit will work with a Yeasu FTM-500DR. Photos attached I think. The unit has the USB-C on one side and Audio and Serial on the other. It came packaged with the cable kit for the Yaesu FT-8xx radio. I am guessing I will at least get a new cable set as IIRC the 500 has a 10 pin data jack.

IMG_7095
IMG_70951920×2560 873 KB

2

the digirig itself is probably default/logic level since it has ft-817 cables.
i’m just guessing though, you’d have to open up the digirig and check continuity of the ‘option pads’ otherwise.

now, i’m not familiar with the ftm-500 so i can only offer this:

any digirig mobile will provide audio+ptt (rts line) to any radio so unless you need/want to use CAT/CI-V/remote control, it won’t matter what config a digirig mobile has.
you just need the audio+ptt cable that matches your radio ‘jacks’.
again, this is operating without remote control functions of the digirig mobile serial jack/cable

good luck
:slight_smile:
kb0wlf

1 Like
3

This is Digirig Mobile in default (logic levels) configuration. As @webmonkey mentioned, any configuration works for base digital modes functionality (audio + PTT).

Yeasu FTM-500DR doesn’t support CAT control so it will not make any difference in this regard if you connect serial port or not. There are some secondary serial functions supported by the radio (e.g. memory programming, GPS output etc - see the manual for info). For that you’ll need Digirig Mobile in RS-232 configuration (one with dot on letter “R”).

4

Thanks guys for your quick responses and help!
