No store cable for the MA1 yet, but KE9BQZ built one and has it running on JS8Call and APRS (DigiPi → Digirig → cable → MA1).

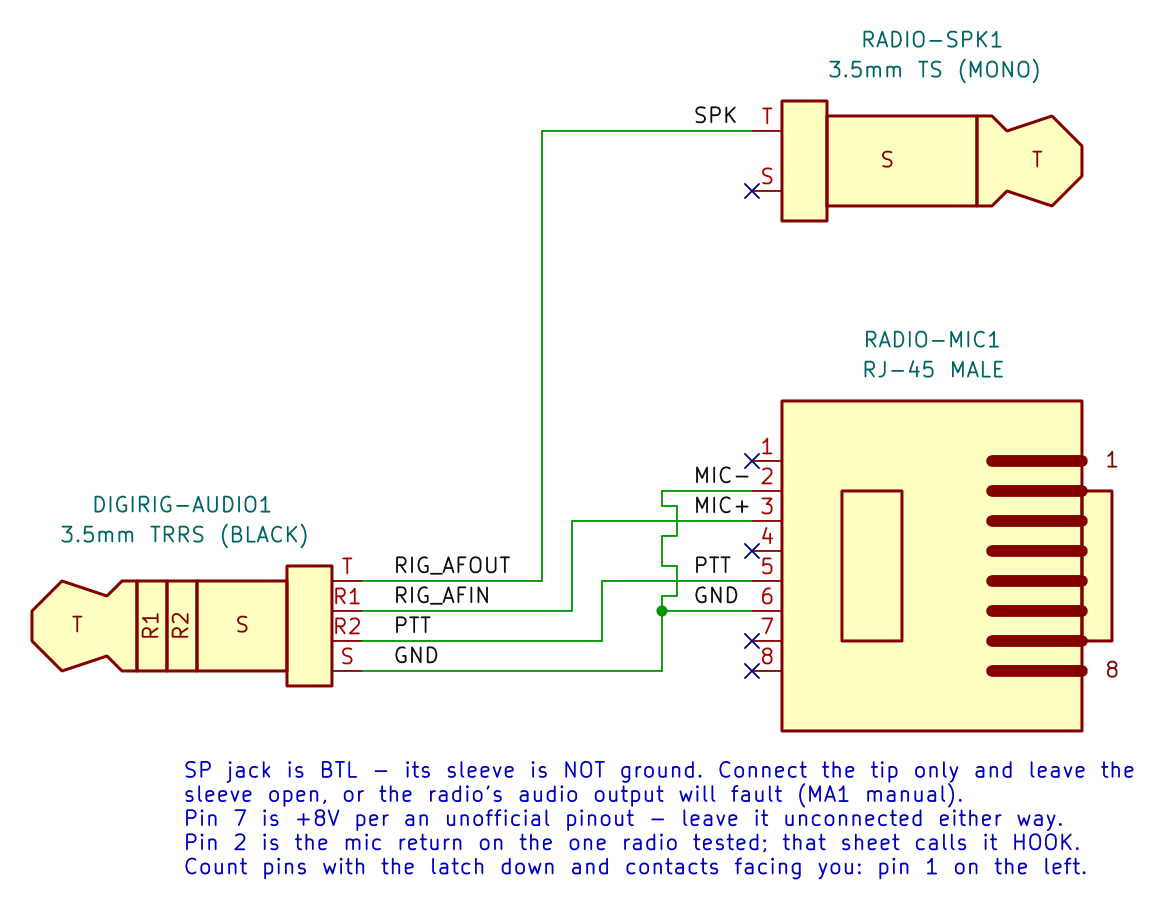

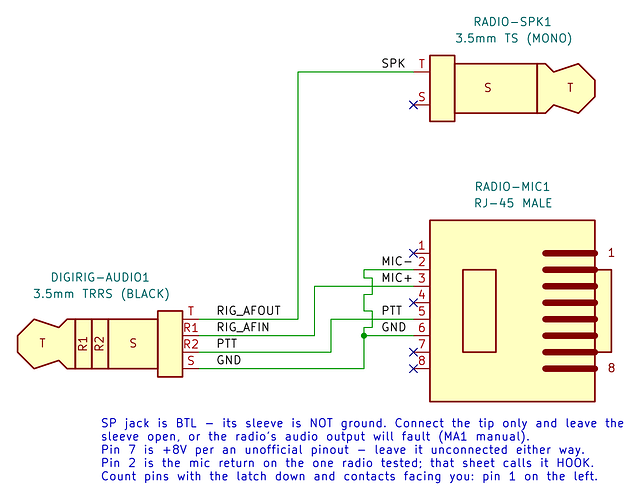

The MA1 splits the signals across two jacks: mic and PTT on the RJ-45 mic connector, receive audio on the rear SP jack. So the cable has two legs.
RJ-45 pin 3 (MIC+) -> DR ring 1 (RIG_AFIN)
RJ-45 pin 5 (PTT) -> DR ring 2 (RIG_PTT)
RJ-45 pin 2 (MIC-) -> DR sleeve (GND)
RJ-45 pin 6 (GND) -> DR sleeve (GND)
SP jack tip -> DR tip (RIG_AFOUT)
SP jack sleeve -> NC
You can start with an ethernet cable and add TRS/TRRS 3.5mm jacks — TRRS for the Digirig end, TRS for the speaker end:
- Amazon.com: 4 Pack Replacement 3.5mm Male Plug to Bare Wire Open End Headset TRRS Cord 4 Pole 1/8" Jack Stereo Audio Cable for Headphone Microphone Repair Cable 3.5mm Plug Connector for Earphone (12in) : Electronics
- Amazon.com: 4Pcs 1FT 3.5mm Male Plug Jack Connector Replacement Repair, 3.5mm TRS Stereo Male Plug to Bare Wire, 1/8" 3 Pole to Bare Wire Audio Cable Open End Cable for Headphone Speaker Controller DIY : Electronics
The SP jack takes a mono plug, so a TS plug is the tidy choice there. A TRS pigtail works too, as long as the ring and sleeve leads are left unwired.
Thanks to KE9BQZ for working it out and sharing the result.
At some point it may be added to the store. Please signup for the email updates on the homepage if you would like to be notified.
