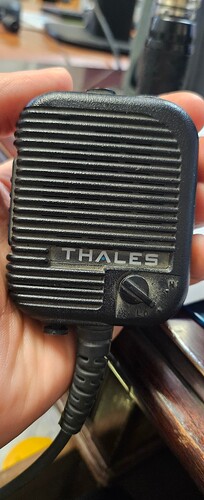

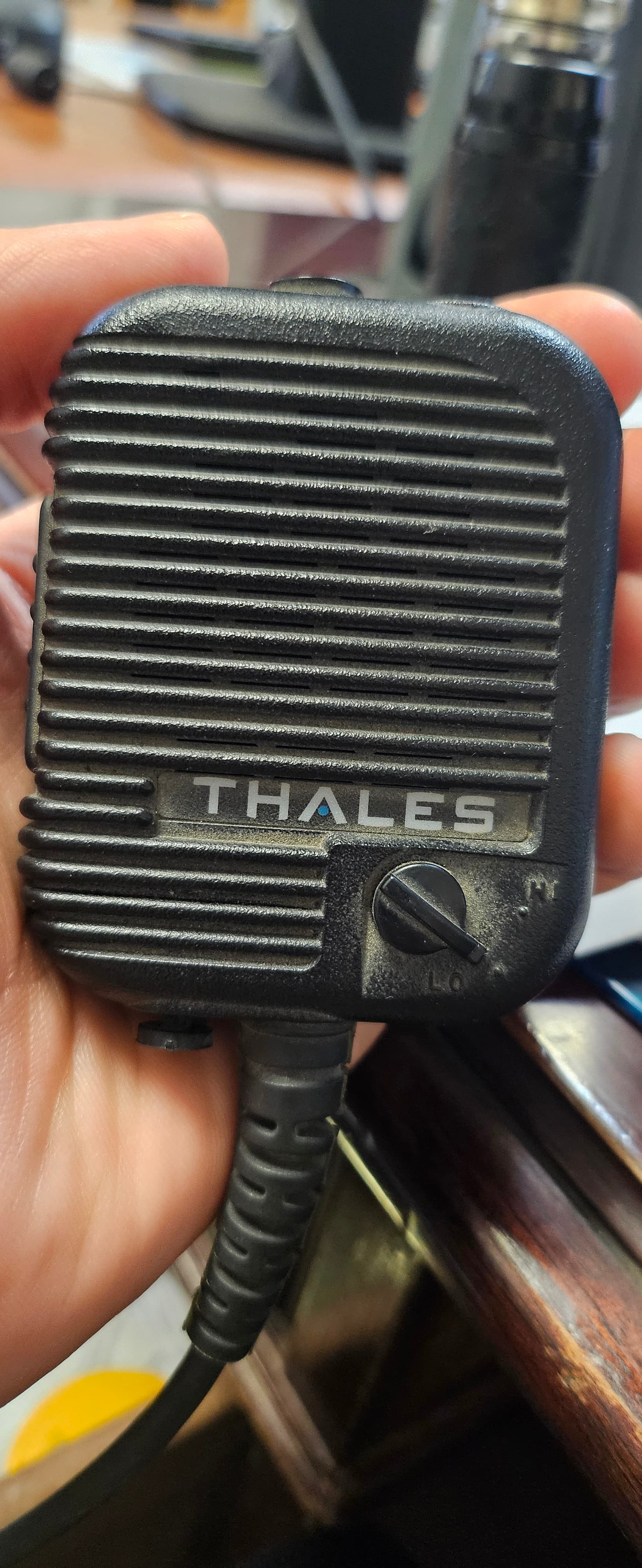

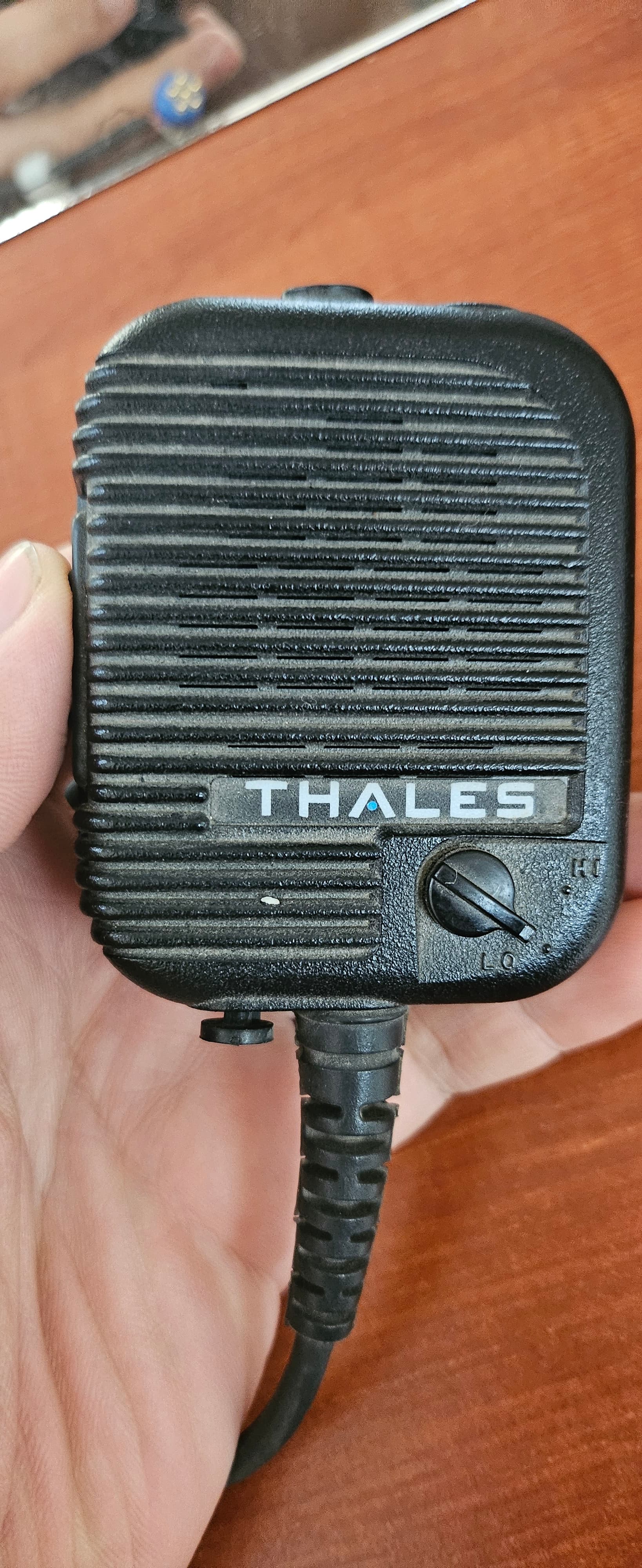

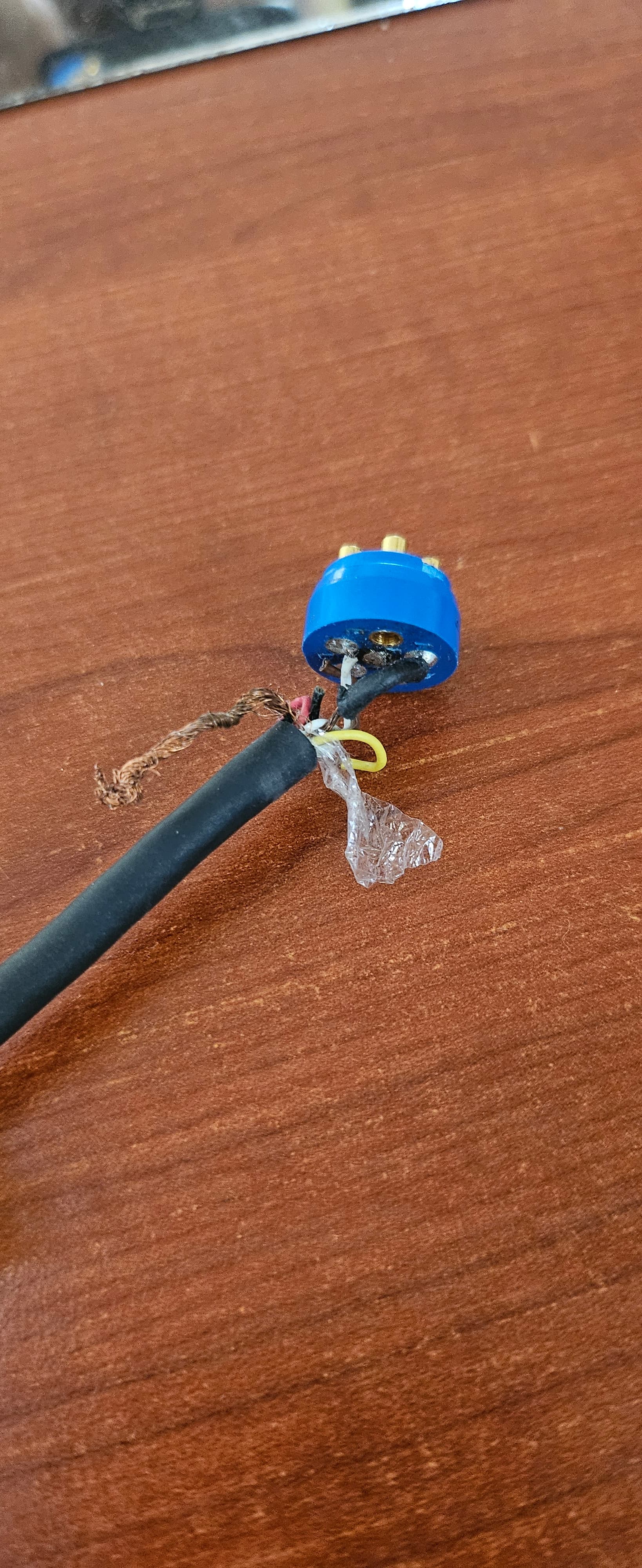

Hello everyone i have base station Thales radio i have some cuts with wiring in the handset connector does anyone can help me with wiring diagram each wire colors goes to which pin letter
There is no industry-standard color coding for the signals in the microphone cable.
If you want to reverse engineer the connections, you’ll need to open the main body and see where wires are connected on the board. That is if you can’t find the information about the pinout from radio’s manufacturer.
You can still find these mics online:
EDIT: possibly this pinout:
Also check out this: U-229 Pin Out
